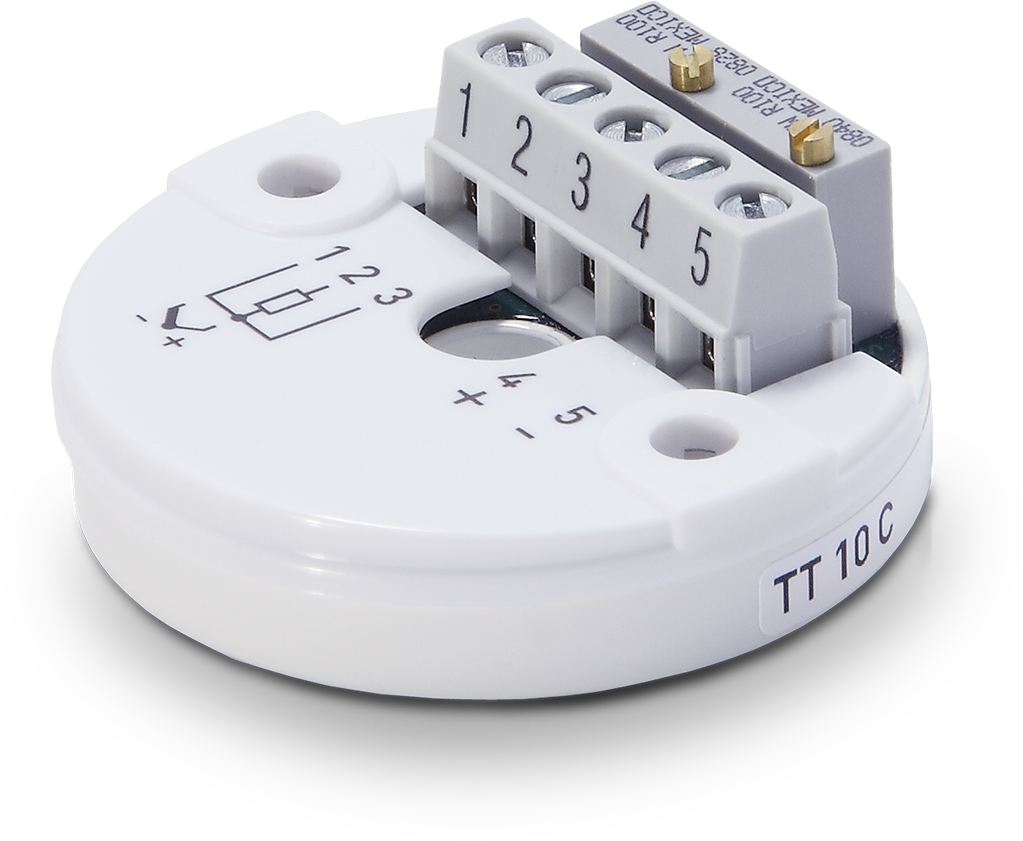

OPTITEMP TT 10 C

Head-mounted temperature transmitter with RTD or TC inputs

  • Input: 1 x Pt100, 3-wire (RTD); J, L, T, K, N (TC)
  • Output: 2-wire, 4…20 mA
  • Manually configurable
  • Accuracy: ±0.15  %

OPTITEMP TT 10 C – Standard version

Head-mounted temperature transmitter OPTITEMP TT 10 C – Standard version

The OPTITEMP TT 10 C is an adjustable 2-wire head-mounted temperature transmitter. It works with Pt100 RTD elements or with thermocouple (TC) element types J, L, T, K and N. The temperature transmitter features high reliability and shows excellent performance in many industrial standard applications. It provides a current output (4…20 mA).

The OPTITEMP TT 10 C can be configured using solder pads and allows easy wiring through the large centre hole. Zero point and span adjustment can be done by potentiometers. The temperature transmitter is designed for installation in a "B connection head" or larger. As an alternative the OPTITEMP TT 10 C can also be mounted on a DIN rail using an optional rail mounting kit. A dedicated rail-mounted version for DIN rails is available with the OPTITEMP TT 10 R.

Product details

Alternative product categoriesHockey-puck transmitter, In-head temperature transmitter

Technical data

Transmitter mountingHead-mounted
Galvanic isolationNo
Transmitter inputResistance (RTD), Thermocouple (TC)
Transmitter programmableNo
Power supply (VDC)6.5…32 VDC
8.5…30 VDC (Ex)
Ambient temperature-40…85°C/
-40…185°F
Diagnostic functionsSensor break detection, Sensor error correction, Sensor short circuit detection

Approvals/Standards

Certificates/Approvals ExATEX
NAMUR complianceNE 21, NE 43

Communication

Analogue outputs4…20 mA
