OPTITEMP TRA-P10

Resistance (RTD) temperature assembly for standard applications

  • Compression fitting connection
  • DIN-style based on form 2, welded multipart thermowell with straight tip
  • -40…+600°C / +1100°F

OPTITEMP TRA-P10 – Standard version

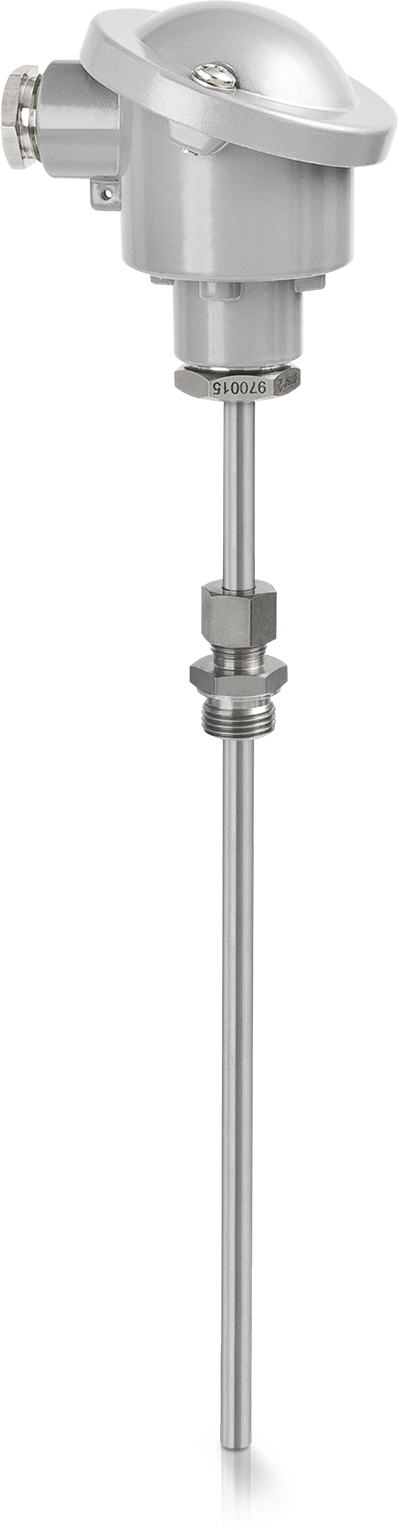

Resistance (RTD) temperature assembly OPTITEMP TRA-P10 – Standard version

The OPTITEMP TRA-P10 is a plug-in RTD sensor assembly with a straight welded multipart thermowell (based on form 2). The industrial temperature assembly is suitable for temperature measurement of liquids and gases. It is designed to operate up to +600°C / +1100°F.

The OPTITEMP TRA-P10 can be used in pipes and tanks, at low to medium pressures and flow velocities. It is very flexible to use since the decision as to the required insertion depth is only necessary immediately prior to installation. The RTD is available with ATEX and IECEx approvals.

Product highlights

  • Temperature measurement of liquids and gases
  • Thermowell material: 1.4404 / 316L or 1.4571 / 316Ti
  • Standard or customised lengths
  • Different connection heads available (IP54…IP68)
  • With optional temperature transmitter
  • Available as intrinsically safe: ATEX, IECEx

Typical applications

  • Standard applications with low to medium pressures and flow velocities
  • Temperature measurement in pipes and tanks
  • Suitable for applications where assemblies complying with DIN standards are required
  • Basic measuring tasks in various industries:
    • Chemical and petrochemical
    • Oil and gas
    • Power generation
    • Machinery and apparatus / OEM
    • Iron and steel
    • Pulp and paper

Case studies

Product details

Alternative product categoriesPotentiometer, Resistance temperature detector, Resistance thermometer, RTD

Technical data

Measurement principlesResistance (RTD)
Measured mediaGases, Liquids
Measuring pointPipe, Tank
Measuring insert typeReplaceable spring loaded mineral isolated measuring insert OPTITEMP TR 100
Measuring insert replaceableYes
RTD element type1 x Pt100, 2 x Pt100
RTD configuration2-wire, 3-wire, 4-wire
Temperature sensor connection type optionCeramic terminal block, Flying wires, Temperature transmitter
Assembly with thermowellYes
Temperature assembly designDIN-style
Thermowell form (according to DIN 43772)Form 2
Thermowell tip designStraight
Thermowell typeMultipart welded
Thermowell diameters10 mm / 0.39", 11 mm / 0.43", 12 mm / 0.47", 9 mm / 0.35"

Approvals/Standards

Certificates/Approvals ExATEX, IECEx

Process connections

Compression fittingsMale:
G1/2, G3/4
1/2 NPT
