OPTITEMP TRA-F23

Resistance (RTD) temperature assembly for standard applications

  • Flange connection
  • DIN-style based on form 2F, welded multipart thermowell with reduced tip
  • -40…+600°C / +1100°F

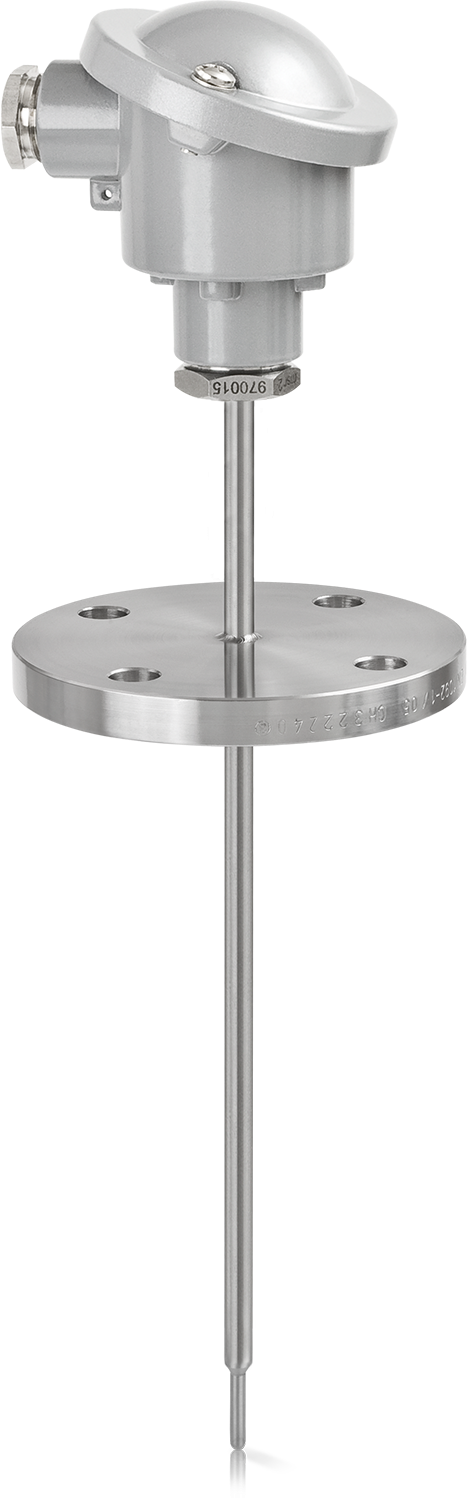

OPTITEMP TRA-F23 – Standard version

Resistance (RTD) temperature assembly OPTITEMP TRA-F23 – Standard version

The OPTITEMP TRA-F23 is a flanged RTD sensor assembly with a reduced welded multipart thermowell (based on form 2F). The industrial temperature assembly for standard applications is suitable for temperature measurement of solids, liquids and gases where a fast response time is required. It can be used in pipes and tanks at low to medium pressures and flow velocities. The OPTITEMP TRA-F23 is designed to operate up to +600°C / +1100°F. The particular advantage of this sensor type is that its wetted parts can be coated (e.g. with PTFE), making it resistant to aggressive media.

Product highlights

  • Temperature measurement of solids, liquids and gases
  • Thermowell material: 1.4404 / 316L or 1.4571 / 316Ti
  • Chemically resistant PTFE or similar coating for all wetted parts available
  • Standard or customised lengths available
  • Different connection heads available (IP54…IP68)
  • With optional transmitter and display

Typical applications

  • Standard applications with low to medium pressures and flow velocities
  • Temperature measurement in pipes and tanks
  • Basic measuring tasks in various industries:
    • Oil and gas
    • Power generation
    • Machinery and apparatus / OEM
    • Iron and steel
    • Pulp and paper

Product details

Alternative product categoriesPotentiometer, Resistance temperature detector, Resistance thermometer, RTD

Technical data

Measurement principlesResistance (RTD)
Measured mediaGases, Liquids, Solids
Measuring pointPipe, Tank
Measuring insert typeReplaceable spring loaded mineral isolated measuring insert OPTITEMP TR 100
Measuring insert replaceableYes
RTD element type1 x Pt100
RTD configuration3-wire, 4-wire
Temperature sensor connection type optionCeramic terminal block, Flying wires, Temperature transmitter
Assembly with thermowellYes
Temperature assembly designDIN-style
Thermowell form (according to DIN 43772)Form 2F
Thermowell tip designReduced
Thermowell typeMultipart welded
Thermowell diameters11 mm / 0.43", 12 mm / 0.47"
Pressure ratingsEN (1092-1): PN40
ASME (B 16.5): Cl 300#

Process connections

Flange connectionsEN (1092-1): DN25…50
ASME (B 16.5): 1…1 1/2"
