OPTISENS IND 1000

Inductive conductivity sensor for water, wastewater and chemical applications

  • For use with analytical transmitter
  • Process connection: G112 union nut and immersion versions
  • 1…2000 mS/cm; Max. +100°C / +212°F
  • Electrodeless conductivity sensor with Pt1000 for temperature compensation

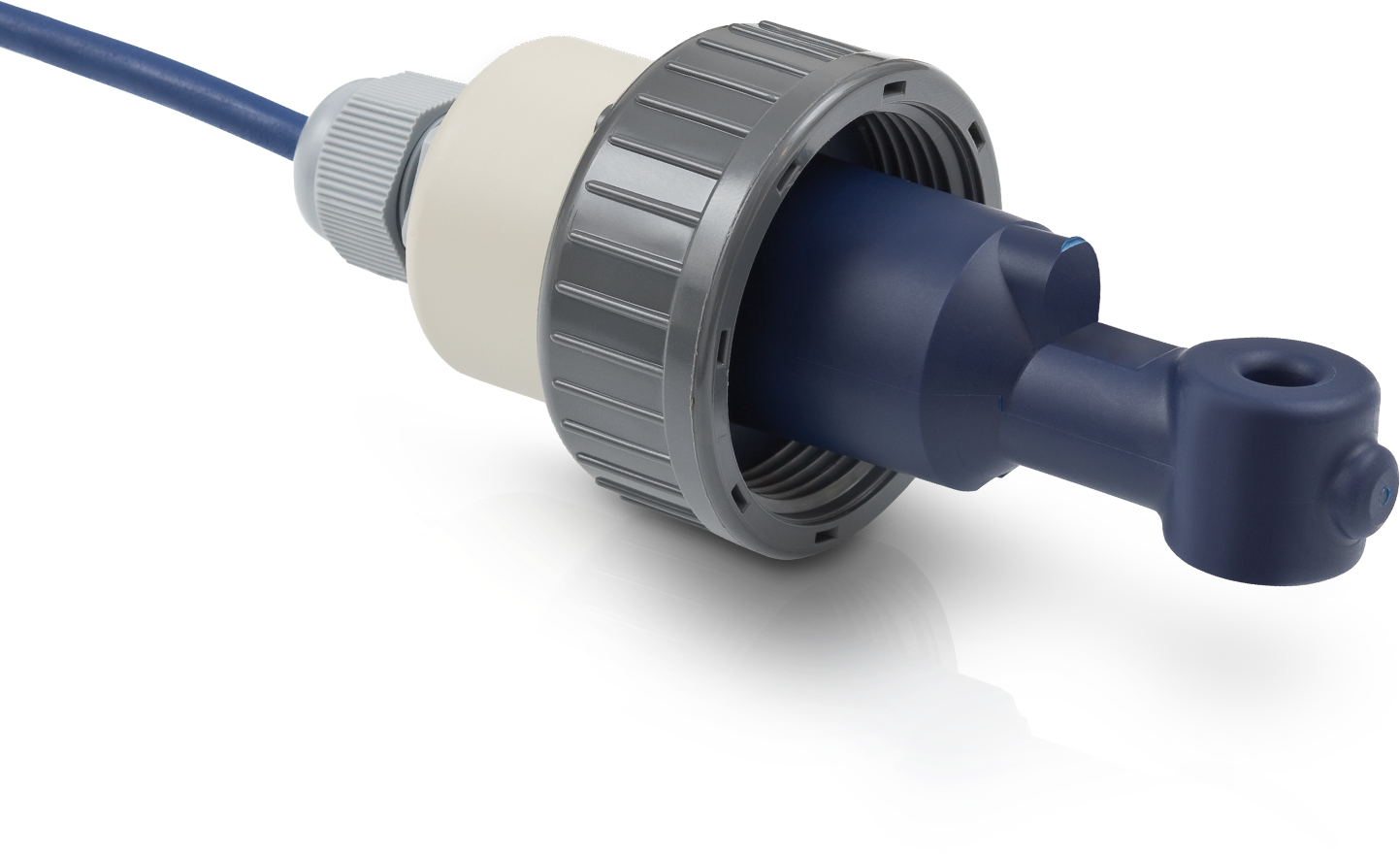

OPTISENS IND 1000 - Version with PP body and non-wetted Pt1000 for insertion installation

OPTISENS IND 1000 - Inductive conductivity sensor for water, wastewater and chemical applications

The OPTISENS IND 1000 is a fully enclosed inductive conductivity sensor for use in heavily contaminated, aggressive media such as industrial or municipal wastewater. It features an extremely rugged design using corrosion-resistant and dirt-repellent materials like PP or PVDF. The measuring cell with two inner ring-shaped measuring coils is completely enclosed and is thus not in contact with the media. The compact sensor design is particularly suited to installation in pipes with small diameters. The OPTISENS IND 1000 easily connects with the MAC 100 or any other analytical transmitter.

Product highlights

  • Corrosion and dirt resistant sensor design
  • Completely enclosed measuring cell with two inner ring-shaped measuring coils
  • Suitable for pipelines with small diameters
  • Low maintenance costs and a long life cycle
  • Wide measuring range
  • With robust PP or PVDF body material
  • With integrated temperature sensor
  • For connection to the MAC 100 or any suitable analytical transmitter

Typical applications

Power industry, chemical and other process industries

  • Monitoring of neutralisation processes in water treatment
  • Regeneration of ion exchangers
  • Monitoring of acid and base concentrations
  • Monitoring of surface and sea water quality
  • Control of sea water desalination processes
  • Quality control and process monitoring in steam and cooling water circuits
  • Quality control in industrial wastewater applications

Food and beverage industry

  • Monitoring of cleaning operations (CIP)

Water and wastewater industry

  • Monitoring of limit values in industrial influent at the inlet of wastewater treatment plants
  • Monitoring of water quality of surface and sea water
  • Process control in water treatment

Product variants

OPTISENS IND 1000 - Inductive conductivity sensor for water, wastewater and chemical applications

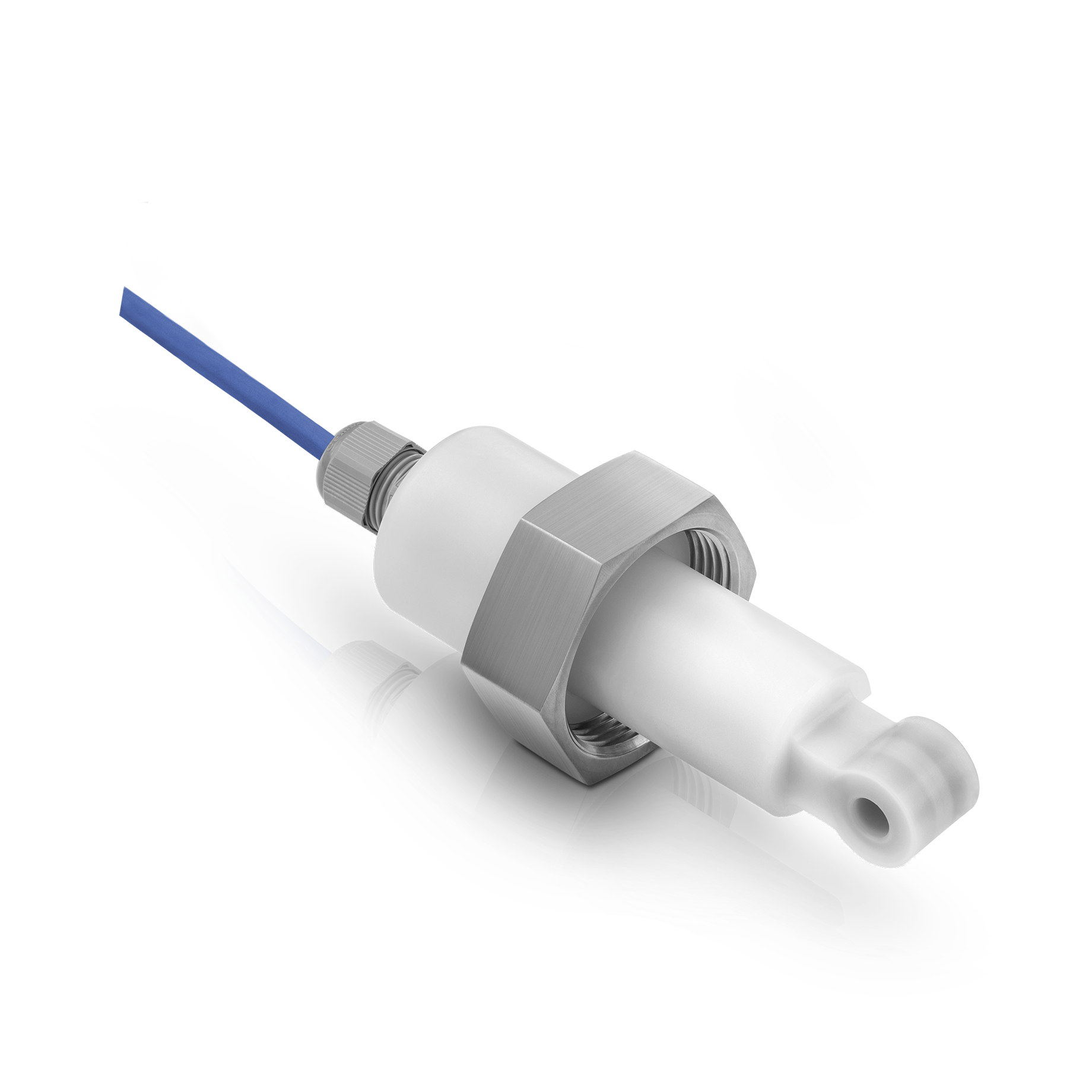

OPTISENS IND 1000
PVDF Insertion version

Inductive conductivity sensor for insertion installation

  • With built-in non-wetted Pt1000 temperature sensor
  • PVDF body material
  • With G 112 union nut (PVC or stainless steel)
  • For insertion installation with T-piece (e.g. SENSOFIT FLOW 1000 T)
OPTISENS IND 1000 - Inductive conductivity sensor for water, wastewater and chemical applications

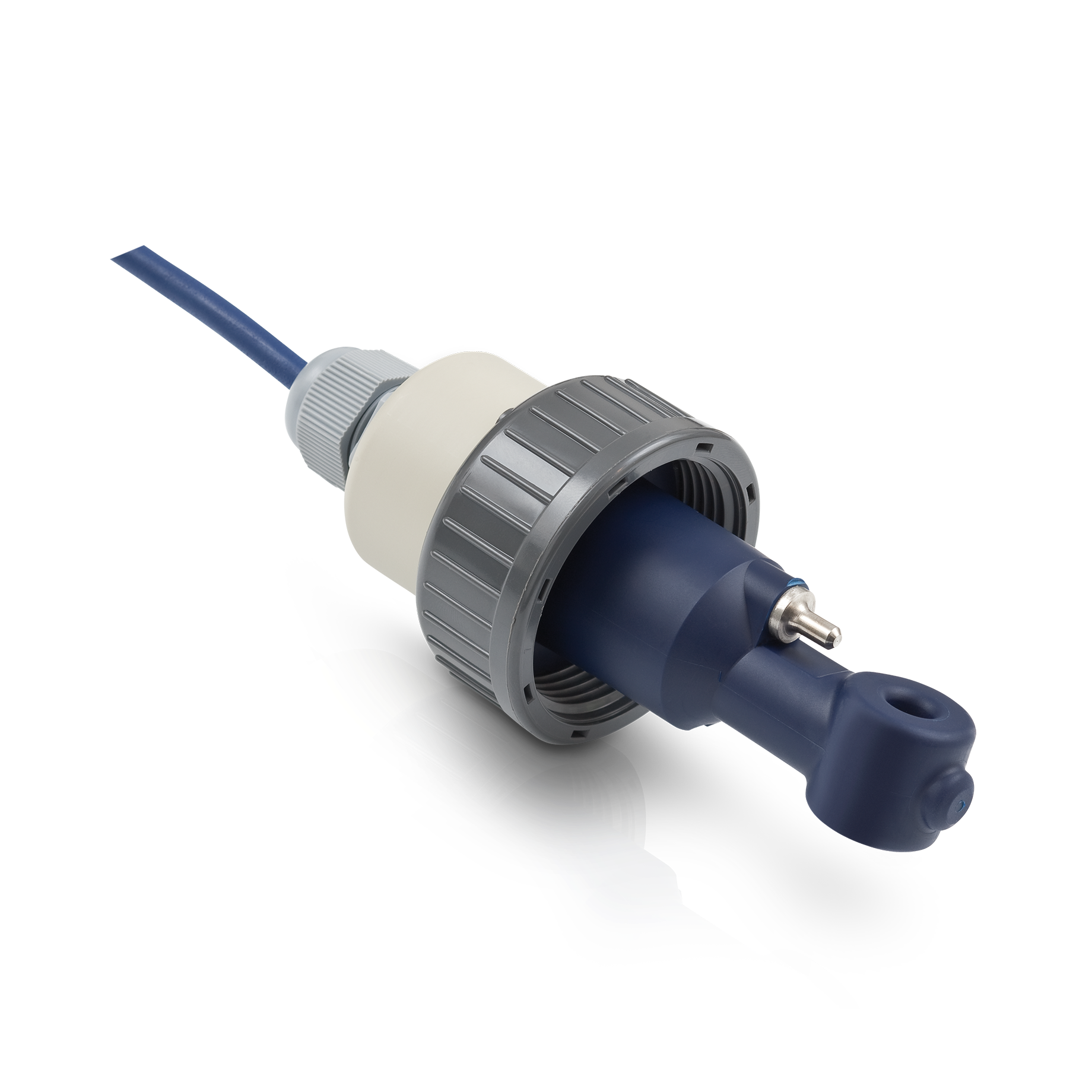

OPTISENS IND 1000
PP Insertion version

Inductive conductivity sensor for insertion installation

  • With built-in wetted or non-wetted Pt1000 temperature sensor
  • PP body material
  • With G112 union nut (PVC or stainless steel)
  • For insertion installation with T-piece (e.g. SENSOFIT FLOW 1000 T)
OPTISENS IND 1000 - Inductive conductivity sensor for water, wastewater and chemical applications

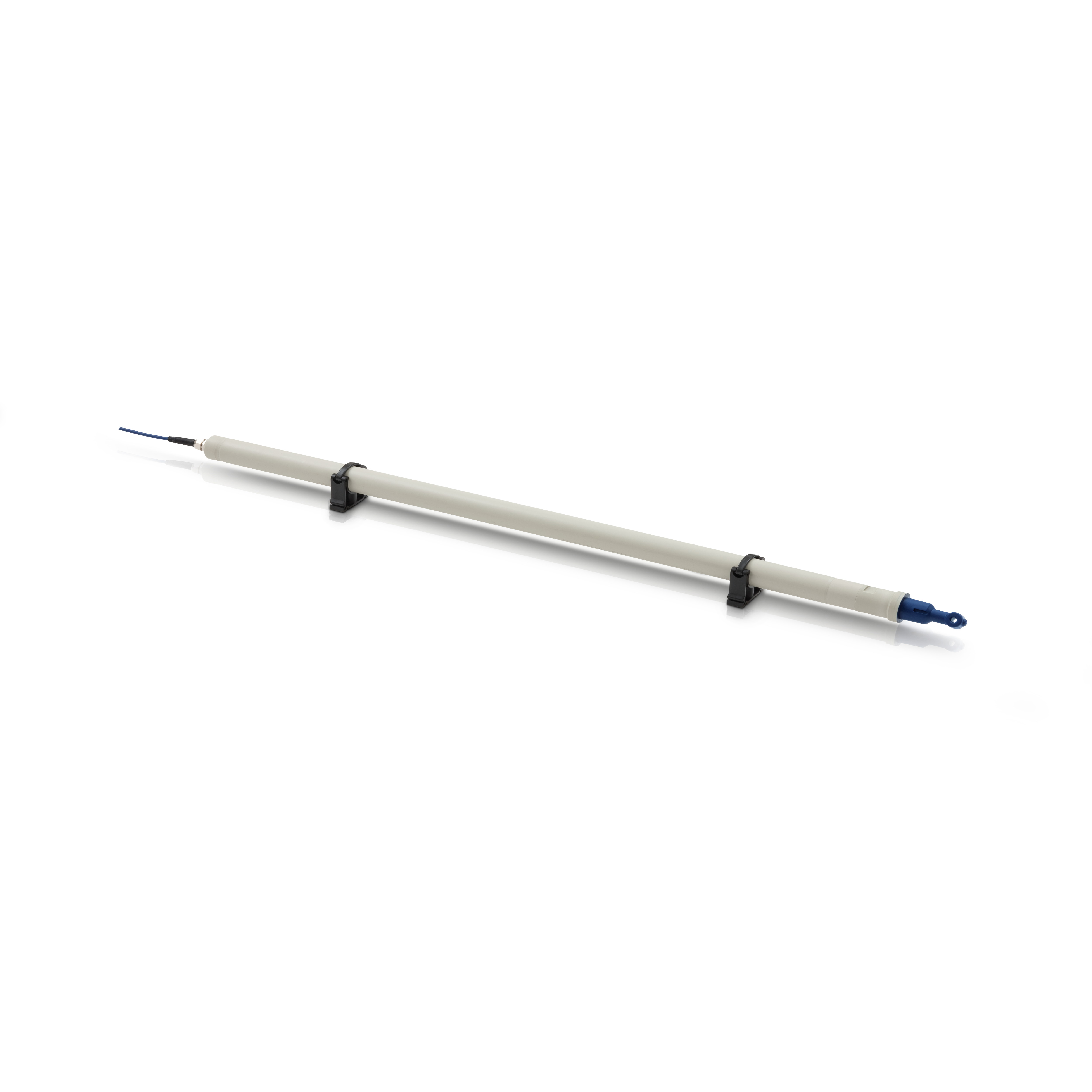

OPTISENS IND 1000
PP Immersion version

Inductive conductivity sensor for immersion installation

  • With built-in wetted or non-wetted Pt1000 temperature sensor
  • PP body material
  • Firmly attached to an immersion holder (1 or 2 m / 3.3 or 6.6 ft)
