OPTISENS ODO 2000
Optical oxygen sensor for water and wastewater applications
- For use with analytical transmitter
- For immersion or insertion
- 0…20 mg/l; Max +50°C / +122°F; 6 bar / 87 psi
- With rugged PVC sensor body, available with spray cleaning nozzle (immersion version)

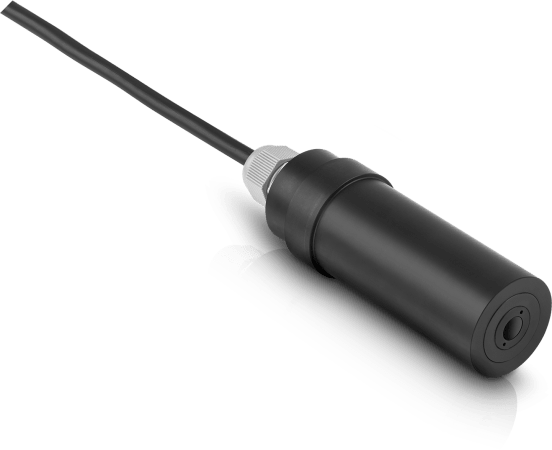

OPTISENS ODO 2000 – Inline version for insertion
The OPTISENS ODO 2000 is a dissolved oxygen sensor with integrated temperature compensation. The optical sensor can be deployed in any size of water treatment plant to monitor and control oxygen concentration. The OPTISENS ODO 2000 operates with the OPTISENS MAC 100 analytical transmitter.
Product highlights
- Precise dissolved oxygen measurement in the ppm range with a resolution of 0.01 ppm
- Long-term stability due to reduced clogging by integrated spray cleaning nozzle (immersion version only)
- No media flow required
- Fast response times for all applications
- Long maintenance intervals: Optical membrane life >1 year (not exposed to sunlight)
- Calibration and configuration with the MAC 100analytical transmitter
- Easy exchangeable optical disk
- Mounting option on a flexible telescopic rod (SENSOFIT IMM 2000) or via a flow-through assembly (SENSOFIT FLOW 2000 T or SENSOFIT FLOW 2000 Flow Cell)
Typical applications
Water and wastewater industry
- Aeration monitoring in treatment plants
- Monitoring of fresh water (e.g. in fish farming)
- Monitoring of potable water
- Monitoring of biological treatment in wastewater aeration basins
- Prevention of water pollution
- Monitoring of effluent values in the outlet
Applications
Related products
SENSOFIT IMM 2000
Immersion assembly for general water and wastewater treatment applications
- For use with OPTISENS ODO/ADO/TUR 2000, TSS 3000 or sensors with NPT thread
- Sensor connection: ¾ NPT, 1¼ NPT (female); Process connection: Telescopic rod holder mounted to handrail
- Immersion length: flexible, max. 4 m / 13.1 ft
- Max. +60°C / +140°F, pressureless
SENSOFIT FLOW 2000 Flow Cell
Flow-through assembly for water and wastewater applications
- For use with optical oxygen and turbidity sensors OPTISENS ODO and TUR 2000 (inline versions)
- Sensor connection: union nut; Process connection: hose connection
- For measurement in small sample streams
- Max. +50°C / +122°F and 6 bar / 87 psi
MAC 100
Liquid analytical transmitter for measurements with sensors of the OPTISENS portfolio
- Output: 3 x 4…20 mA, 3 relays (mechanical)
- Input: max. 2 x sensor, 2 x temperature
- -15…+55°C / +5…+131°F (ambient)
- Robust housing for wall-mount installation
